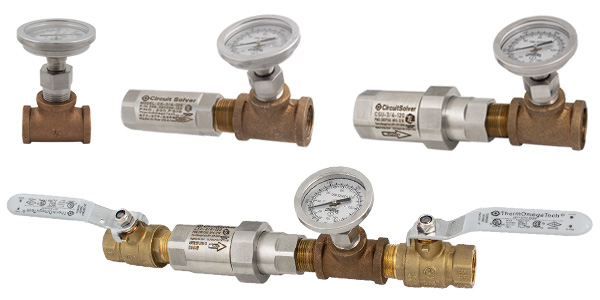

CircuitSolver with Thermometer Assembly
The thermometer assembly can be purchased independently or integrated into any CircuitSolver® automatic balancing valve configuration for effortless installation. Before leaving our facility, every integrated design is fully assembled and tested for accuracy and leak points.
How It Works:
Installed at the end of each supply branch, the automatic CircuitSolver® balances a domestic hot water system by continuously adjusting flow through each balancing valve to maintain a set temperature at the end of each supply branch or riser to keep hot water at fixtures.
The CircuitSolver® thermometer assembly monitors in-line water temperatures with an easy-to-read dial for instant hot water temperature verification.
Have Questions?
Ready to Buy?
Typical Applications:
The thermometer assembly can be used in addition to any new or existing CircuitSolvers® balancing valve installations. Used in commercial buildings of all sizes and domestic hot water recirculation systems with varying complexity, CircuitSolver® installations often include hospitals, schools, hotels, high-rise, and multi-family apartment buildings.
To see CircuitSolver® installations in your area, visit our installations page.
CircuitSolver® thermostatic balancing valves can also balance the return flow between the master mixing valve and the water heater. Go to the Balancing a DHWS Return with CircuitSolver page to learn more about this application.
Features:
- Measures water temperatures 50°F – 300°F (10°C – 149°C)
- Monitors system temperature with an easy-to-read dial
- Available with any CircuitSolver® configuration or independently
Certifications:
- All Components are NSF/ANSI/CAN 61 or NSF 372 Certified
- Lead Free
- Fully compliant with Section 1417(d) of SDWA, the Safe Drinking Water Act
- Supports efforts toward LEED Certification
- Complies with the Buy American Act
Specifications:
- Sizes: 1/2”, 3/4″, 1”
- Fixed Temperatures:
- 100°F (37.7°C)
- 105°F (40.5°C)
- 110°F (43.3°C)
- 115°F (46.1°C)
- 120°F (48.8°C)
- 125°F (51.6°C)
- 130°F (54.4°C)
- 135°F (57.2°C)
- 140°F (60.0°C)
- Max Working Pressure: 200 PSIG (14 BAR)
- Max Working Temperature: 250°F (121°C)
